Toy example of Ambient Noise Adjoint Tomography

This is a toy example of Ambient Noise Adjoint Tomography (ANAT) using the SpecFWAT package. It demonstrates how to set up a simple 3-D model, generate synthetic data, and perform the inversion process.

Access this example at SpecFWAT/tests/toy_example_noise .

The Jupyter notebook for preparation of this example can be downloaded here.

Define study region and mesh

The ./DATA/meshfem3D_files/Mesh_Par_file is used to define the study region and mesh parameters. The file contains parameters such as latitude, longitude, depth, and UTM projection zone.

LATITUDE_MIN                    = -1.0
LATITUDE_MAX                    =  1.0
LONGITUDE_MIN                   = -1.0
LONGITUDE_MAX                   =  1.0
DEPTH_BLOCK_KM                  = 32.0
UTM_PROJECTION_ZONE             = 30
SUPPRESS_UTM_PROJECTION         = .false.

In this example, we define a 2x2 degree area centered at the origin with a depth of 32 km. The UTM projection zone is set to 30.

Generate initial and target model

Here we create a simple 1-D model as the initial model and 3-D model with a 2x2x2 checkerboard pattern as the target model. The model is defined in a 3-D grid.

python
import numpy as np
from pyfwat.pario import readpar, chpar
from pyproj import Proj
import h5py
import matplotlib.pyplot as plt
import pandas as pd

The pyfwat is a Python package for preparation and post-processing of SpecFWAT data and model. It provides functions to read, write and change parameters.

Generate regular grid on UTM coordinates

This example use UTM coordinates due to SUPPRESS_UTM_PROJECTION set to .false.. Thus, we need to convert geographic coordinates (latitude and longitude) to UTM coordinates using the pyproj library. We then create a regular grid with a spacing of 2 km in the horizontal direction and 1 km in the vertical direction.

python
# read mesh parameters
lat_min = readpar('./DATA/meshfem3D_files/Mesh_Par_file', 'LATITUDE_MIN')
lat_max = readpar('./DATA/meshfem3D_files/Mesh_Par_file', 'LATITUDE_MAX')
lon_min = readpar('./DATA/meshfem3D_files/Mesh_Par_file', 'LONGITUDE_MIN')
lon_max = readpar('./DATA/meshfem3D_files/Mesh_Par_file', 'LONGITUDE_MAX')
dep_max = readpar('./DATA/meshfem3D_files/Mesh_Par_file', 'DEPTH_BLOCK_KM')

# Get geographic coordinates and convert to UTM
zmax = 0
zmin = -dep_max*1000
zone = int(readpar('./DATA/meshfem3D_files/Mesh_Par_file', 'UTM_PROJECTION_ZONE'))
geo2utm = Proj(proj='utm', zone=zone, ellps='WGS84')
xmin1, ymin1 = geo2utm(lon_min, lat_min)
xmin2, ymin2 = geo2utm(lon_min, lat_max)
xmin = min(xmin1, xmin2)
xmax1, ymax1 = geo2utm(lon_max, lat_min)
xmax2, ymax2 = geo2utm(lon_max, lat_max)
xmax = max(xmax1, xmax2)
xmin1, ymin1 = geo2utm(lon_min, lat_min)
xmin2, ymin2 = geo2utm(lon_max, lat_min)
ymin = min(ymin1, ymin2)
xmax1, ymax1 = geo2utm(lon_min, lat_max)
xmax2, ymax2 = geo2utm(lon_max, lat_max)
ymax = max(ymax1, ymax2)

# Create axis for regular grid
dh = 2000
x = np.arange(xmin, xmax+dh, dh)
y = np.arange(ymin, ymax+dh, dh)
dz = 1000
z = np.arange(zmin, zmax+dz, dz)

Create initial model

First, We define a function to compute the P-wave velocity (vp) and density (rho) from the S-wave velocity (vs).

python
def get_vp_rho(vs):
    vp = 0.9409 + 2.0947*vs - 0.8206*vs**2 + 0.2683*vs**3 - 0.0251*vs**4
    rho = 1.6612*vp - 0.4721*vp**2 + 0.0671*vp**3 - 0.0043*vp**4 + 0.000106*vp**5
    # vs = 0.7858 - 1.2344*vp + 0.7949*vp**2 - 0.1238*vp**3 + 0.0064*vp**4
    return vp, rho

Then we create a 1-D initial model with a linear increase of S-wave velocity from 3.3 km/s at the surface to 4.0 km/s at 27 km depth and a constant S-wave velocity of 4.0 km/s below 27 km depth.

python
vsmin, vsmax = 3.3, 4.0
vs = np.zeros((len(x), len(y), len(z)))
idx = np.where(z >= -27000)[0]
vs[:, :, idx] = np.linspace(vsmin, vsmax, len(idx))[::-1][np.newaxis, np.newaxis, :]
vs[:, :, z < -27000] = vsmax
vp, rho = get_vp_rho(vs)

Finally, we save the initial model to an HDF5 file: initial_model.h5.

python
with h5py.File('initial_model.h5', 'w') as f:
    f.create_dataset('x', data=x)
    f.create_dataset('y', data=y)
    f.create_dataset('z', data=z)
    f.create_dataset('vp', data=vp*1000)
    f.create_dataset('vs', data=vs*1000)
    f.create_dataset('rho', data=rho*1000)

Create target model

We create a 3-D checkerboard pattern for the target model by adding 2x2x2 perturbations to the initial model. The perturbations are defined as a sine function in the horizontal direction and a cosine function in the vertical direction.

python
# create checkerboard model
limh = 40000
limz = [-30000, 0]
n_pert_x = 2
n_pert_y = 2
n_pert_z = 2
pertv = 0.12

x_pert = np.zeros_like(x)
ntaper_left, ntaper_right = create_taper(x[0]+limh, x[-1]-limh, x)
x_pert[ntaper_left:x.size-ntaper_right] = \
            np.sin(n_pert_x*np.pi*np.arange(x.size-(ntaper_left+ntaper_right))/ \
            (x.size-(ntaper_left+ntaper_right)))
print('size of anomaly:', (x[-1]-x[0]-2*limh)/n_pert_x)

y_pert = np.zeros_like(y)
ntaper_left, ntaper_right = create_taper(y[0]+limh, y[-1]-limh, y)
y_pert[ntaper_left:y.size-ntaper_right] = \
            np.sin(n_pert_y*np.pi*np.arange(y.size-(ntaper_left+ntaper_right))/ \
            (y.size-(ntaper_left+ntaper_right)))
print('size of anomaly:', (y[-1]-y[0]-2*limh)/n_pert_y)

z_pert = np.zeros_like(z)
ntaper_left, ntaper_right = create_taper(limz[0], limz[1], z)
z_pert[ntaper_left:z.size-ntaper_right] = \
            np.sin(n_pert_z*np.pi*np.arange(z.size-(ntaper_left+ntaper_right))/ \
            (z.size-(ntaper_left+ntaper_right)))
print('size of anomaly:', (limz[1]-limz[0])/n_pert_z)

xx, yy, zz = np.meshgrid(x_pert, y_pert, z_pert, indexing='ij')
pert = xx*yy*zz*pertv
vs_pert = vs*(1+pert)
vp_pert, rho_pert = get_vp_rho(vs_pert)

Finally, we save the target model to an HDF5 file: target_model.h5.

python
with h5py.File('target_model.h5', 'w') as f:
    f.create_dataset('x', data=x)
    f.create_dataset('y', data=y)
    f.create_dataset('z', data=z)
    f.create_dataset('vp', data=vp_pert*1000)
    f.create_dataset('vs', data=vs_pert*1000)
    f.create_dataset('rho', data=rho_pert*1000)

Setup sources and receivers

We set up 49 receivers in a 7x7 grid with a spacing of 0.5 degrees and 9 sources in a 3x3 grid with a spacing of 1 degree. The sources and receivers are defined in UTM coordinates and then geographic coordinates for Specfem3D format.

Setup receiver and source template

python
lim = 20000
nrec = 7
nsrc = 3
sta = []
utm2geo = Proj(proj='latlong', zone=zone, datum='WGS84')
for j, sty in enumerate(np.linspace(ymin+lim, ymax-lim, nrec)):
    for i, stx in enumerate(np.linspace(xmin+lim, xmax-lim, nrec)):
        stnm = 'ST{:03d}'.format(j*nrec+i+1)
        stlo, stla = geo2utm(stx, sty, inverse=True)
        sta.append([stnm, 'MX', stla, stlo, 0.0, 0.0])
sta = pd.DataFrame(sta, columns=['stnm', 'net', 'lat', 'lon', 'elev', 'buried'])

src = []
ratio = nrec//nsrc+1
for j, sy in enumerate(np.linspace(ymin+lim, ymax-lim, nsrc)):
    for i, sx in enumerate(np.linspace(xmin+lim, xmax-lim, nsrc)):
        evnm = 'ST{:03d}'.format(j*ratio*nrec+i*ratio+1)
        evlo, evla = geo2utm(sx, sy, inverse=True)
        src.append([f'MX.{evnm}', evla, evlo, 0.0, 0.0, 1.0])
src = pd.DataFrame(src, columns=['event_name', 'event_lat', 'event_lon', 'event_depth', 'event_buried', 'event_weight'])

Save receivers for each source

We save the receivers for each source in a separate file in the src_rec/STATIONS_${event_name}. See Sources and receivers section for details.

python
for i, row in src.iterrows():
    staname = row['event_name'].split('.')[1]
    sta_copy = sta[sta['stnm'] != staname]
    sta_copy.to_csv(f'src_rec/STATIONS_{row['event_name']}', sep=' ', index=False, header=False)

Save source list

We save the source list in the src_rec/sources_noise.dat file. See Source list section for details.

python
src.to_csv('src_rec/sources_noise.dat', sep=' ', index=False, header=False)

Write FORCESOLUTION file

The FORCESOLUTION file is used to specify the source time function and source locations for Specfem3D. We create a file FORCESOLUTION_${event_name} in the src_rec folder with the source information. See Source files section for details.

python
# write FORCESOLUTION files
solution = '''
FORCE  001
time shift:     0.0000
f0:             0.5
latorUTM:       0.0
longorUTM:      0.0
depth:          0.0000
source time function:            0
factor force source:             1.d15
component dir vect source E:     0.d0
component dir vect source N:     0.d0
component dir vect source Z_UP:  1.d0
'''
for i, row in src.iterrows():
    with open(f'src_rec/FORCESOLUTION_{row["event_name"]}', 'w') as f:
        solution_ev = chpar(solution, 'latorUTM', row['event_lat'], type='solution')
        solution_ev = chpar(solution_ev, 'longorUTM', row['event_lon'], type='solution')
        f.write(solution_ev)

Visualize the target model

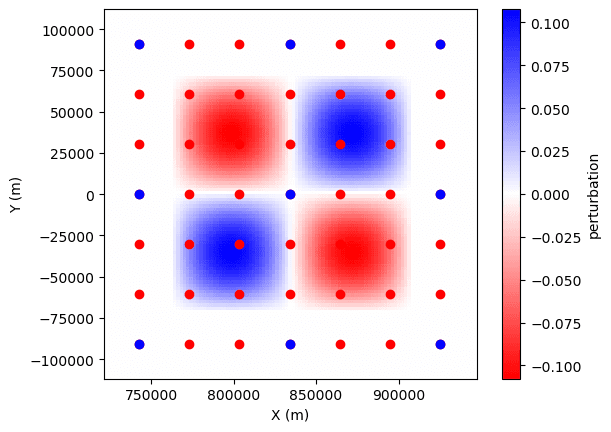

We can visualize the target models and source and receiver locations using matplotlib. Below is an example of 2-D slice at 20 km.

python
dep = -20000
iz = np.argmin(np.abs(z - dep))
plt.figure()
plt.pcolor(x, y, pert[:, :, iz].T, cmap='bwr_r')
plt.colorbar(label='perturbation')
plt.gca().set_aspect('equal')
stxx, styy = geo2utm(sta.lon, sta.lat)
plt.plot(stxx, styy, 'ro')
evxx, evyy = geo2utm(src.event_lon, src.event_lat)
plt.plot(evxx, evyy, 'bo')

Generate synthetic data

To generate synthetic data, we need to run the forward simulation using SpecFWAT. Run 00_forward.sh to generate synthetic data for the target model. The synthetic data is saved in the fwat_data folder.

00_forward.sh
#!/bin/bash
set -e

mkdir -p DATABASES_MPI
mkdir -p OUTPUT_FILES

NPROC=`grep ^NPROC DATA/Par_file | grep -v -E '^[[:space:]]*#' | cut -d = -f 2 | cut -d \# -f 1`

cp target_model.h5 DATA/tomo_files/tomography_model.h5
# Run Forward to generate data
mpirun -np $NPROC ../../bin/xfwat_mesh_databases -s noise
mpirun -np $NPROC ../../bin/xfwat_fwd_measure_adj -m M00 -s noise -r 1

Conduct the inversion

Run 01_run_this_test.sh to perform the inversion process with 6 iterations.

01_run_this_test.sh
#!/bin/bash
set -e

NPROC=`grep ^NPROC DATA/Par_file | grep -v -E '^[[:space:]]*#' | cut -d = -f 2 | cut -d \# -f 1`

# Run Inversion

for it in `seq 0 5`; do
    MODEL=`printf "M%02d" $it`
    if [ $it -eq 0 ]; then
        cp initial_model.h5 DATA/tomo_files/tomography_model.h5
    fi
    mpirun -np $NPROC ../../bin/xfwat_mesh_databases -s noise
    mpirun -np $NPROC ../../bin/xfwat_fwd_measure_adj -m $MODEL -s noise -r 3
    mpirun -np $NPROC ../../bin/xfwat_post_proc -m $MODEL
    mpirun -np $NPROC ../../bin/xfwat_optimize -m $MODEL
done
