Visualization

After 14 iterations of inversion, we can visualize model model_M14.h5 in the optimize directory. Same as the initial model, the final model is organized with 3-D regular grid in HDF5 format. Here we use the PyGMT package to visualize the model.

Read HDF5 model

First, we read the HDF5 model using the h5py package and calculate velocity perturbation with respect to the initial model.

Python


import h5py
import pygmt

with h5py.File('./optimize/model_M14.h5', 'r') as f:
    x = f['x'][:]
    y = f['y'][:]
    z = f['z'][:]
    vsf = f['vs'][:]
    vpf = f['vp'][:]
    rhof = f['rho'][:]
with h5py.File('./optimize/model_M00.h5', 'r') as f:
    x = f['x'][:]
    y = f['y'][:]
    z = f['z'][:]
    vsi = f['vs'][:]
    vpi = f['vp'][:]
    rhoi = f['rho'][:]

dvs = 100 *(vsf - vsi) / vsi

Plot depth slices of velocity perturbation

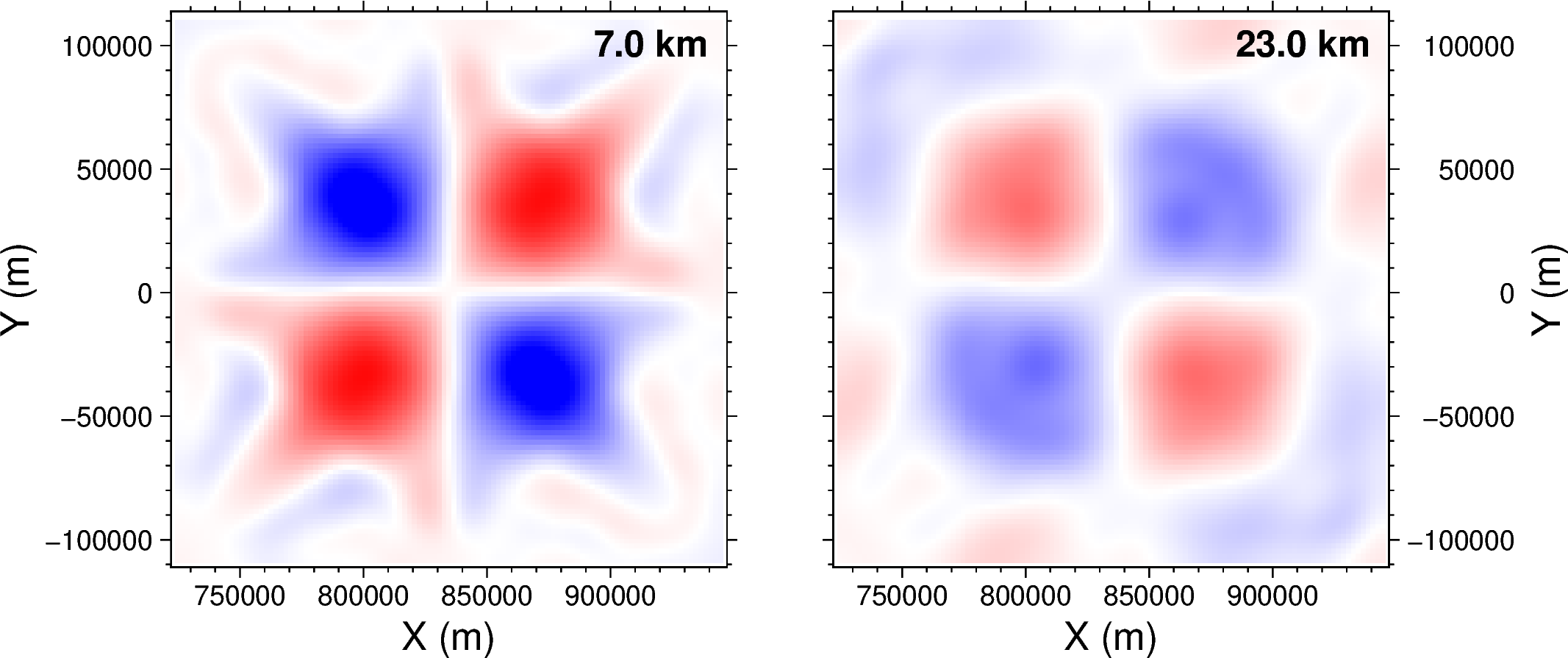

We select depth slices at 7 km and 23 km to visualize the Vs perturbation.

Python


depth = [-7000, -23000]

fig = pygmt.Figure()
with fig.subplot(nrows=1, ncols=2, figsize=("14c", "7c"),
                 margins=["0.5c", "0.5c"],
                 frame=['xaf+lX (m)', 'yaf+lY (m)', 'WSne'],
                 sharey=True,):
    for i, dep in enumerate(depth):
        iz = np.argmin(np.abs(z - dep))
        print(iz)
        fig.basemap(
            region=[x.min(), x.max(), y.min(), y.max()],
            projection="x?c",
            panel=True
        )
        grid = xr.DataArray(
            dvs[:, :, iz].T,
            coords=[y, x],
            dims=["y", "x"],
        )
        pygmt.makecpt(
            cmap="polar",
            series=[-12, 12, 0.1],
            continuous=True,
            reverse=True,
            background=True
        )
        fig.grdimage(
            grid=grid,
            cmap=True,
        )
        fig.text(
            text="%.1f km" % (dep / -1000),
            position="TR",
            font="12p,Helvetica-Bold",
            offset="-0.2c/-0.2c",
        )
fig.show()

Plot cross-sections of velocity perturbation

We select cross-sections at Y=50000 m to visualize the Vs perturbation.

Python



ysec = 50000
fig = pygmt.Figure()
fig.basemap(region=[x.min(), x.max(), z.min(), z.max()],
            projection="x0.00005c/0.0001c",
            frame=[f"WSne", "xaf+lX (m)", "yaf+lZ (m)"],)
iy = np.argmin(np.abs(y - ysec))
print(iy, dvs.shape)
grid = xr.DataArray(
        dvs[:, iy, :].T,
        coords=[z, x],
        dims=["y", "x"],
    )
pygmt.makecpt(
    cmap="polar",
    series=[-12, 12, 0.1],
    continuous=True,
    reverse=True,
    background=True
)
fig.grdimage(
    grid=grid,
    cmap=True,
)
fig.text(
    text=f"Y = {ysec:.2f} m",
    position="BR",
    font="12p,Helvetica-Bold",
    offset="-0.2c/0.2c",
)
fig.show()
